Industrial RK3399 PCBA Motherboard Embedded Linux Development Board

    Buy cheap Industrial RK3399 PCBA Motherboard Embedded Linux Development Board from wholesalers

    Buy cheap Industrial RK3399 PCBA Motherboard Embedded Linux Development Board from wholesalers
    • Buy cheap Industrial RK3399 PCBA Motherboard Embedded Linux Development Board from wholesalers

    Industrial RK3399 PCBA Motherboard Embedded Linux Development Board

    Ask Lasest Price
    Brand Name : Sunchip
    Model Number : AD-K01
    Certification : CE, FCC,ROHS
    Price : US$85~US$123
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000 per month
    Delivery Time : 3~8 days
    • Product Details
    • Company Profile

    Industrial RK3399 PCBA Motherboard Embedded Linux Development Board

    Industrial RK3399 PCBA Motherboard Embedded Linux Development Board


    Rockchip ARM Industrial Development Multi-functional PCBA Motherboard Rk3399 Main Board


    Products Description

    Overview:


    The intelligent industrial integrated machine board adopts the Rockchip RK3399 six-core chip solution and supports Google Android 7.0 and above. Powerful computing ability. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Applicable to intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipments.


    Features:


    • Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920 * 1080).
    • A variety of interactive mode interface: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
    • A variety of network interfaces: Ethernet, wireless WiFi, Bluetooth.
    • Multi-channel USB interface, serial port, IO port output.
    • Support 4K video play and HD 2.0 HD output.
    • Strong anti-electromagnetic interference and electromagnetic compatibility.

    Basic hardware specifications


    CPURockchip RK3399 dual core Cortex-A72+quad-core Cortex-A53 CPU
    GPUARM Mali-T860MP4 GPU
    RAMDDR3 2G/4G Optional
    Built-in storage capacityEMMC 8GB/16G/32G/64G Optional(Label 8GB)
    Display interfaceLVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display
    EDP screen interface, support for resolution 1920x1080
    Onboard backlightSupport 3.3V/5V/12V Optional
    Touch screen

    Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch).

    Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

    InternetWith RJ45 interface, support for 10/100 Ethernet
    With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
    Image rotationSupport 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing
    Real Time ClockBuilt-in real-time clock battery
    Interface equipmentSupport MIPI interface camera, up to 500W pixels
    Support USB camera
    4 USB HOST, 1 USB OTG (support POE power supply)
    3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.)
    3 IO test port
    SD card, maximum support 64GB
    Class D amplifier: 1.5W * 2 8 ohm, support for the microphone
    HDMI 2.0 output
    AudioMP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
    VideoSupport for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing.
    PictureSupport for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function
    Power AdapterInput:AC100-240V.50-60HZ, Output: DC12V 3A


    Basic software specifications


    Operating systemGoogle Android 7.0
    Basic software featuresWeb browsing, web chat, e-mail, e-books, resource managers
    Sound modeClock, alarm clock, calculator, recording
    Voice supportMulti-national voice
    RecordingSupport MP3, WMA format recording



    Tool


    Calendar
    Alarm Clock
    Calculator
    Note
    Weather + clock
    Recording
    File processingEPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
    E-bookPDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
    ScheduleCalendar
    Input methodStandard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
    Internet

    Browser -ChromeLite
    Email
    Gmail



    System Management


    APK Installer
    Original Android system, open root privileges, product development can be customized
    Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended
    Support OTA remote upgrade
    System setting
    Google Maps
    Global time

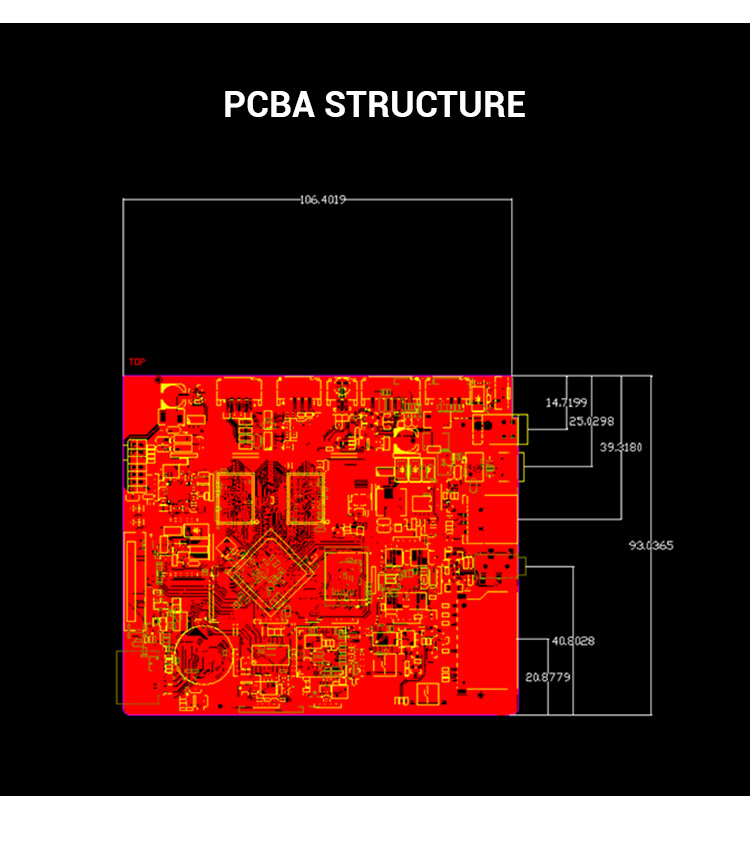

    Product Pictures


    Packing & Delivery
    1.Packing: carton box or wood case
    2.Payment methods: accept T/T,Western Union,Paypal and Cash.
    3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
    4.Warranty: 12 months warranty. Paid maintenance over 12 months.
    5.Remark: ROHS, CE & FCC certificates in e-file format are available.
    6.MOQ: 1pc, sample order are welcome for your evaluation.

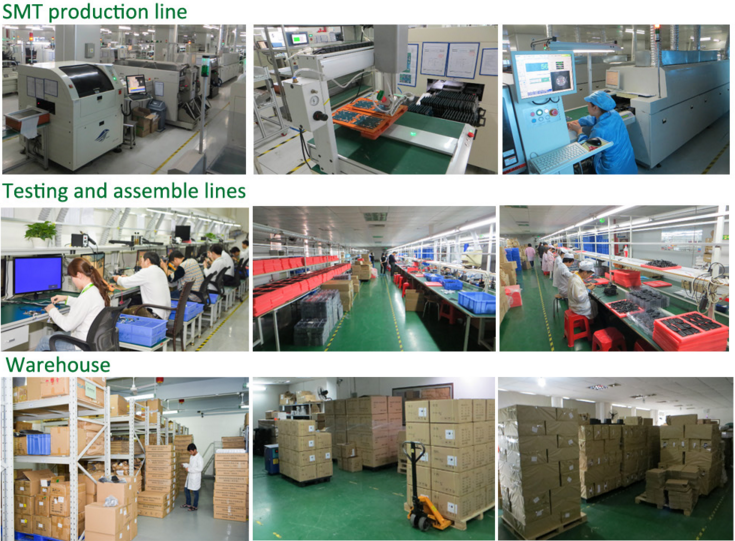

    Why Choose Us
    1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
    2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
    3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge!
    4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages.
    5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength.
    6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.
