RK3188 Industrial Embedded Motherboard LCD Display Develop Board
Overview:
RK3188 Android all in one board, using Rockchip RK3188 quad-core
chip program, support Google Android 4.4 system. Support the
mainstream audio and video formats and picture decoding. Dual 8-bit
LVDS interface 1920 * 1080, can drive 7 "to 82" display. Exclusive
support for 3G module Internet access, rich interface, so that
products become more common, widely used in advertising machines,
one machine, security, industrial control, and so on intelligent
control. Because of its hardware platform, Android intelligent
features, in the need for human-computer interaction, network
equipment, interactive, intelligent terminal platform can be used.
Feature:
- High performance. RK3188 chip using quad-core A9 program, is
currently on the market one of the most powerful quad-core chip.
Using the chip RK3188 motherboard program, compared to the common
market of single-core, dual-core, quad-core program, a qualitative
leap in performance, able to play a variety of formats
high-definition video, can handle complex interactive operation.
- High stability. RK3188 Andrews board, in hardware, software, to
increase their own unique technology to ensure product stability,
can make the final product to 7 * 24 hours unattended.
- Highly integrated. RK3188 Andrews integrated board integrated
Ethernet, wifi, Bluetooth, amplifier, SD card, 3G data interface,
backlight power supply and so on, greatly simplifying the machine
design. Ultra-thin motherboard design, make the machine design more
beautiful.
- High scalability. 4 USB HOST, 3 serial ports, can expand more
peripherals.
Basic Hardware Specifications:
| CPU | Rockchip RK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz |
| Frequency | 1.6 GHz |
| RAM | DDR3 1G/2G Optional |
| Built-in storage capacity | EMMC FLASH 8GB/16G/32G Optional(Label 8GB, available NAND) |
| Display interface | LVDS interface (single, 6-way, 8-bit dual). Support maximum
resolution 1920x1080, support 7 "-82" display |
| Mainboard backlight | Support 3.3V / 5V / 12V optional |
| Touch screen | Provides I2C interface (can support multi-point resistance touch,
multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave
touch, multi-point optical touch. |
| Internet | With RJ45 interface, support Ethernet. |
| With wifi & BT module, support Wi-Fi 802.11b / g / n protocol.
Support BT4.0 |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual /
automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered battery |
| System watchdog | Support software, hardware watchdog |
| Interface device | Support DVP interface camera, the maximum support 500W pixels |
| Support USB camera |
| 4 USB HOST,1 USB OTG |
| 3 groups of serial ports. Support external serial device module (3G
module, NFC module, printer, card reader, etc.) |
| 4 IO detection port |
| SD card, maximum support 32GB |
| D class Large built-in speaker,3W*2 8R |
| Support microphones |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video
formats 1080P decoding, YouTube and other online video, up to
1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and
support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software specification:
| Operating system | Google Android 4.4 |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather + clock |
| Record |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third party input method
(Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management | APK Installer |
| The original eco-Android system, open root privileges, can be
customized product development |
| Real-time remote monitoring, system crash since recovery, 7 * 24
hours unattended |
| System setting |
| Google Maps |
| Global time |
| Support OTA remote upgrade |
Products images:
Shenzhen Sunchip Technology Co., Ltd

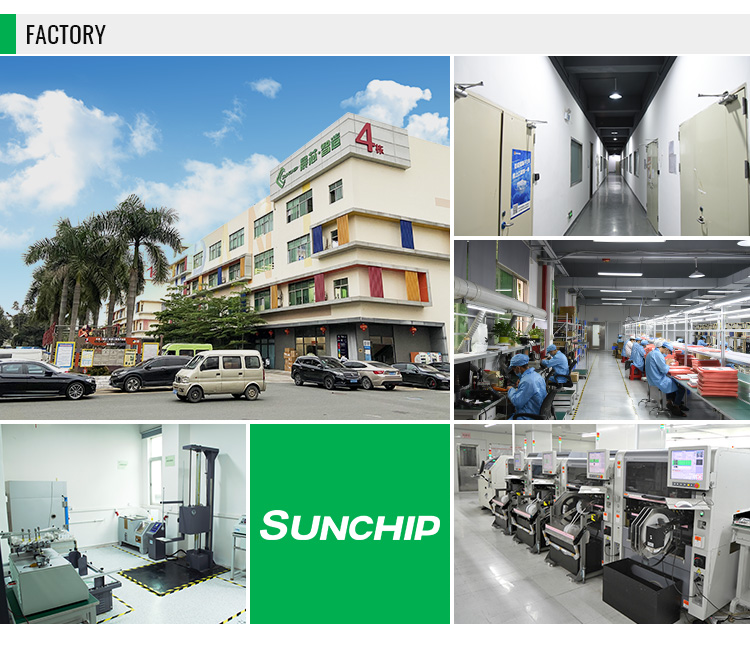

SHENZHEN SUNCHIP TECHNOLOGY CO.,LTDEstablished in 2011, SUNCHIP is a high-tech engineering company
