GPU ARM Development Board , LVDS EDP Screen Interface Industrial
Motherboard
RK3399 is a low-power, high-performance processor that can be used
for computing, personal mobile Internet devices and other smart
device applications. Based on big. Small architecture, it
integrates dual-core Cortex-A72 and quad-core Cortex-A53 with a
separate NEON coprocessor.
And it is a new application processor chip with low power
consumption and high performance, which is based on big Little
architecture, that is, the dual core cortex-a72 and quad core
cortex-a53 combined architecture with independent neon coprocessor,
is mainly used in computers, personal Internet mobile devices, VR,
advertising machines and other intelligent terminal devices.
rockchip motherboard
1. Rockchip RK3399 6 Core ARM® 64bit ,frequency up to 2.0GHz
android motherboard
2. HDMI Support 4K 60HZ
3. With Android 7.1 , (Ubuntu optional)
4. Apply to Financial mahcine ,Advertising Machine,Vending machine
etc.
Basic hardware specifications:
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum
resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac
protocol. Support BT 5.0 |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual /
automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse,
keyboard and standard USB peripherals), 1x USB3.0 |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC
module, printer, card reader, etc.) |
| TF card, maximum support 64GB |
| Class D amplifier: 5W*2 8 ohms, support microphone |
| HDMI 2.0 output |

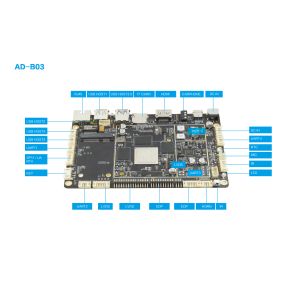

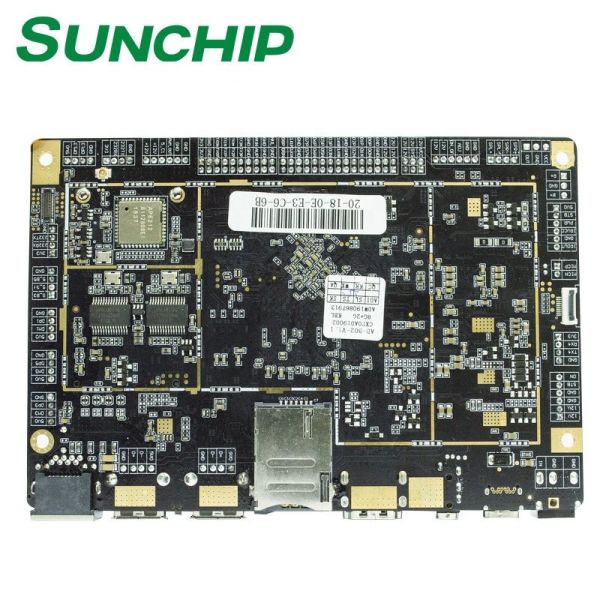

Product images
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE,
for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your
company?
A: Delivery / production time is directly affected by the size of
the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways
to help our partners when starting the sample processes. Make sure
to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this
possible?
A: SURE.We customize on a regular basis products for many large
retaillers and brands. If your order is at the below 10 units, we
can consider this as a SAMPLE order, some fees might apply for the
logo prints.
Different methodes are used for logos, please ask our sales for
more information on this issue, we will surely find the right
solution for you!
