21.5'' 23.8'' 27'' 32'' 43'' inch ultra thin wall mounted advertising player touch network lcd
digital signage display with cms
Model NO.: AD-3240
1. Video and picture playing can be mixed.
2. Timer: the player powers on / off automatically every day at your
pre-set time.
3. Anti-theft device effectively prevents the player and memory card from being stolen
or misuse in public place.
4. No DVD-style mechanical movement, hence more durable and
suitable for long-hour advertising playing.
5. With full HD 55 inch (16:9) TFT LCD screen, plays from USB flash drive.
| Features |
| 1. Application fields:public places ,for example,shopping mall,
restaurant,airport, square, commercial buidings,etc. |
| 2. Outer shell is made of extra good quality metal material and
tempered glass. |
| 3. Support split screen, user can split screens freely by software. |
| 4. Videos switch with no pause. ( seamless switching ) |
| 5. with 8GB internal memory, updating contents automatically by
USB. |
| 6. Rotating vidoes automatically. |
| 7. Adopts high transparent tempered glass (2-6 mm ) as protection
layer toprevent screen from being broken or distorted. |
| 8. Support IR Remote controller, user can use remote controller to
operate the whole device. |
| 9. Build-in high quality stereo speakers. Amplifier / 3.5mm audio
jack is optional. |
| 10. Playing circles automatically when powers on . |
| 11. Allowing memory of breakpoint/AD management system. |
Other Functions:
1. wall mounted; VESA.
2. Industrial-grade design, heavy-duty build for non-stop
loop-playing video and picture 24/7/365.
3. Scrolling Text Message and Play Log functions.
4. Upload contents to the memory card by one-step inserting an USB
flash drive; no need to pull out the memory card; no need to use a
laptop.
5. Video and picture playing can be mixed.
6. Timer: the player powers on / off automatically every day at
your pre-set time.

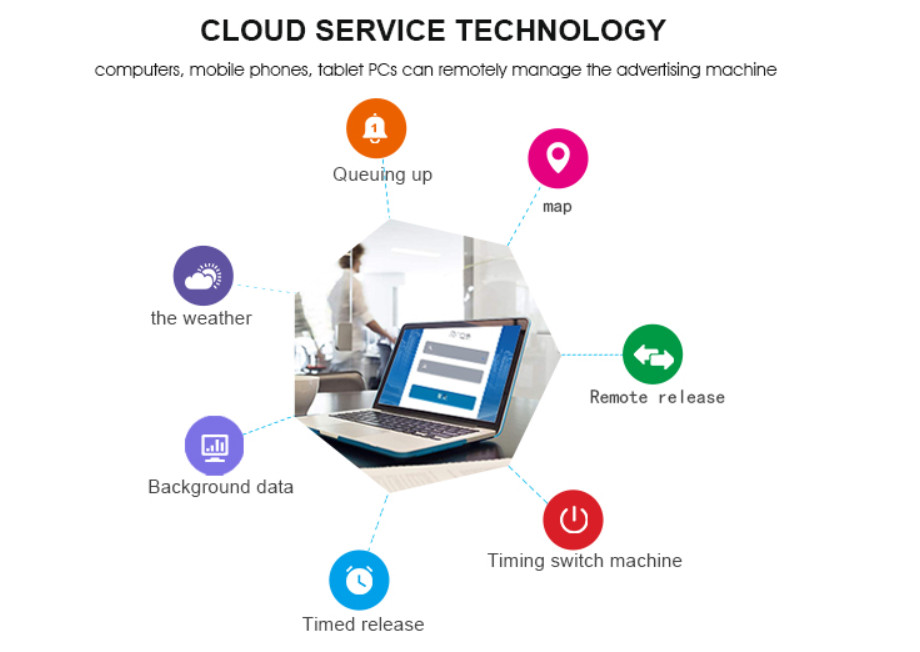

7. Support CMS.
8. No DVD-style mechanical movement, hence more durable and
suitable for long-hour advertising playing.
9. With full HD 43 inch (16:9) TFT LCD screen, plays from USB flash
drive.
SPECIFICATIONS
Hardware:
| CPU | Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU RK3288, RK3399, RK3566, RK3568, RKPX30, RK3188, RK3128 etc. |
| Frequency | 1.5GHz |
| RAM | DDR3 1G/2G optional |
| ROM | EMMC 8GB/16G/32G/64G optional (default: 8GB) |
| Display interface | LVDS optional |
| MIPI optional |
| Touch Screen | Support USB IR multi touch, sonic multi touch, optical multi touch |
| Network | RJ45 interface, ethernet 10/100M |
WIFI& BT: support Wi-Fi 802.11b/g/n/, and support BT4.0 support (optional WIFI 802.11 a/b/g/n/ac 5G&2.4G) |
| RTC | Built in internal battery for Real time clock |
| Interfaces | Support USB camera |
| 3*USB HOST,1*USB OTG |
| 3*Serial ports, support external devices (NFC module, printer, card
reader etc.) |
| Support MIPI camera, max 8MP |
| D classamplifier,5W*2 8R |
| support microphone *1 |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line
video such as YouTube, max support 4K,HTML5 playback,Flash10.1
playback |
| Images | Support JPG,BMP,PNG etc. picture formats, browse, orientation,
slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V-3A |
Software:
| OS | Google Android 8.1 |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | Multi language |
| Recording | Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr
format |
| Tools | Calendar |
| Alarm Clock |
| Calculator |
| Note |
| Weather Clock |
| Recording |
| Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input methods | Standard Android keyboard, optional third-party input method
(Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Email |
| Gmail |
| System Management | APK Installer |
| Original eco-Android system, open root privileges, can be
customized product development |
| Real-time remote monitoring, system crash recovery automatically, 7
* 24 hours unattended |
| Support OTA remote upgrade |
| System setting |
| Google Maps |
| Global time |
Application Of Digital Signage
1. Public Places: Subway, Airport, Bookshop, Exhibition hall,
Gymnasium, Museum, Conference center, Talent market, Lottery
center, etc.
2. Entertainment Places: Movie theatre, Fitness center, bar,
Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company,
etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive
shop, chain store, 4S shop, Hotel, Restaurant, travel agency,
Chemist's shop, etc.
5. Public Service: Hospital, School, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building,
Commercial office buildings, Model houses, Sales offices, the
entrance of elevator, etc.
PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard
packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large
order.
Our Services:
1) Original guarantee; 2) Competitive prices;
3) Offer 12 months of warranty; 4) Stable supply at least 3-5years;
5) Any question will be reply in 24 hours
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display,
Stretched LCD Display, Open Frame Display and Android Media Player
Advertising Box.
WELCOME TO CONTACT US!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399,
RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch,
15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD
digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as
8inch.
