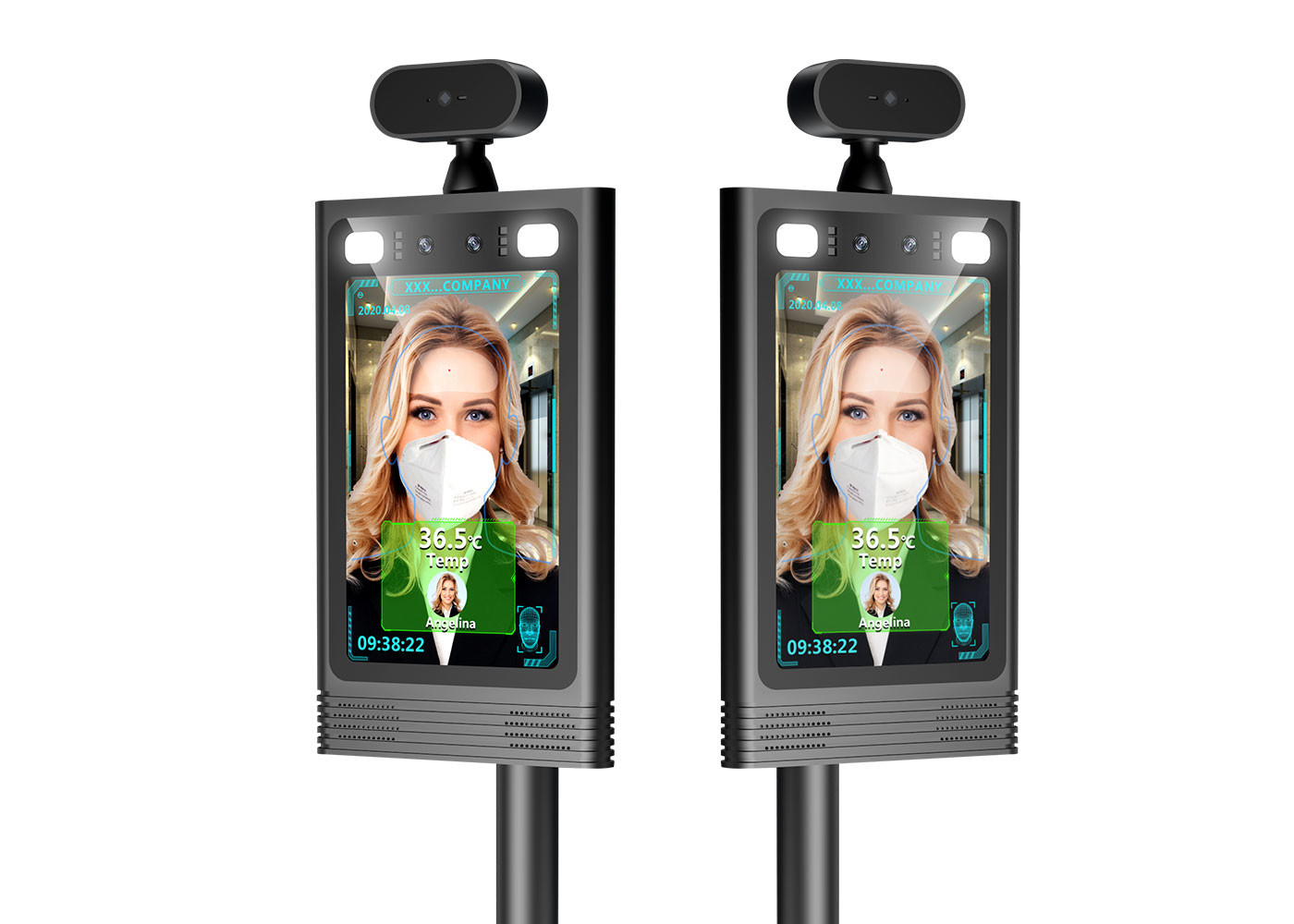

Infrared Thermal Scanner Human Body Temperature Measuring Face Recognition Access Control

This face recognition and thermal detection terminal device can detect elevated skin temp brought on by various external causes, Can be widely used in aisles, gates, gates and other controlled entrances or areas.

*8-inch IPS full view LCD display.

*Industrial appearance, dustproof design,Stable and reliable.

System

CPU

RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764

RAM

2GB

Internal memory

16GB

Operation system

Android 8.1

Display

Panel

8"

Resolution

800*1280

Contrast ratio

1000:1

Brightness

350cd/㎡

Aspect Ratio

16:10

Network

WiFi

802.11b/g/n 2.4G

Buletooth

Bluetooth 4.1

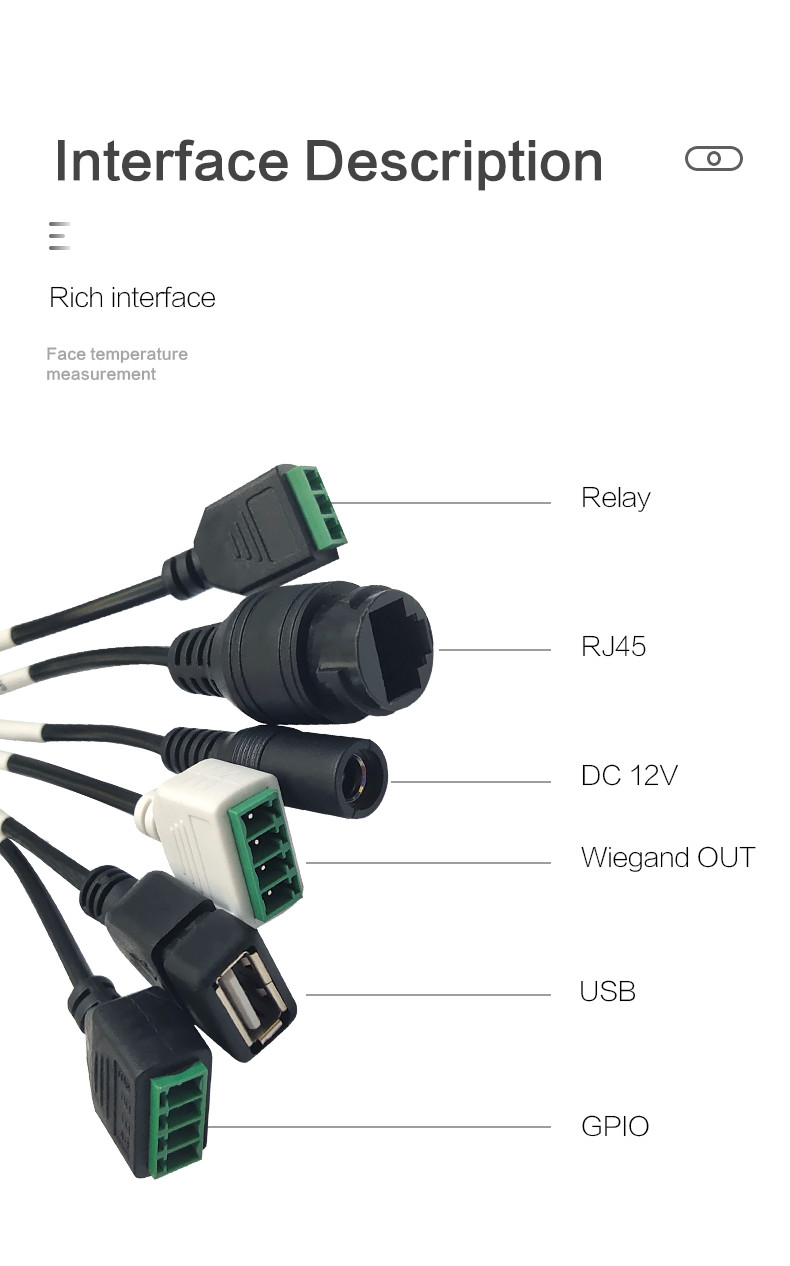

Interface

OTG

mini_USB_OTG *1

USB host

Support USB host*1

Relay control port

Support

Wiegand out control port

Support

GPIO control port

Support

(2 channels)

RJ-45

10M/100MEthernet

DC

DC power 12V input

Software

Optimum detection distance

45 -55 cm

Detection accuracy

±0.3

Dual light multi lattice infrared thermal imaging

Accurate recognition temperature warning with data stored in cloud server

Other functions

Wireless mouse

Support

Human body detection module

Infrared detection

Status indicator

Tri-color LED function indicator

High precision infrared thermal imaging detection

High precision infrared thermal imaging detection

Speaker

2*2W

Camera

200W 1080P Front camera

OSD

Multilingual OSD in English/German/Italian/Japanese/Korean.....

Reliability

Operating ambient temperature

0℃～+35℃

Optimum working environment temperature

16-27℃

Optimum temperature range for measurement

30-45℃

Working humidity

20%～95% Non condensing

Storage temperature

-20℃～+60℃

Overall power consumption

Below 18W

Protection level

IP54

ESD

Positive and negative 4K contact discharge/8Kv air discharge

Surge

Support

Harmonic

Support

Other

Adapter

12V/2A

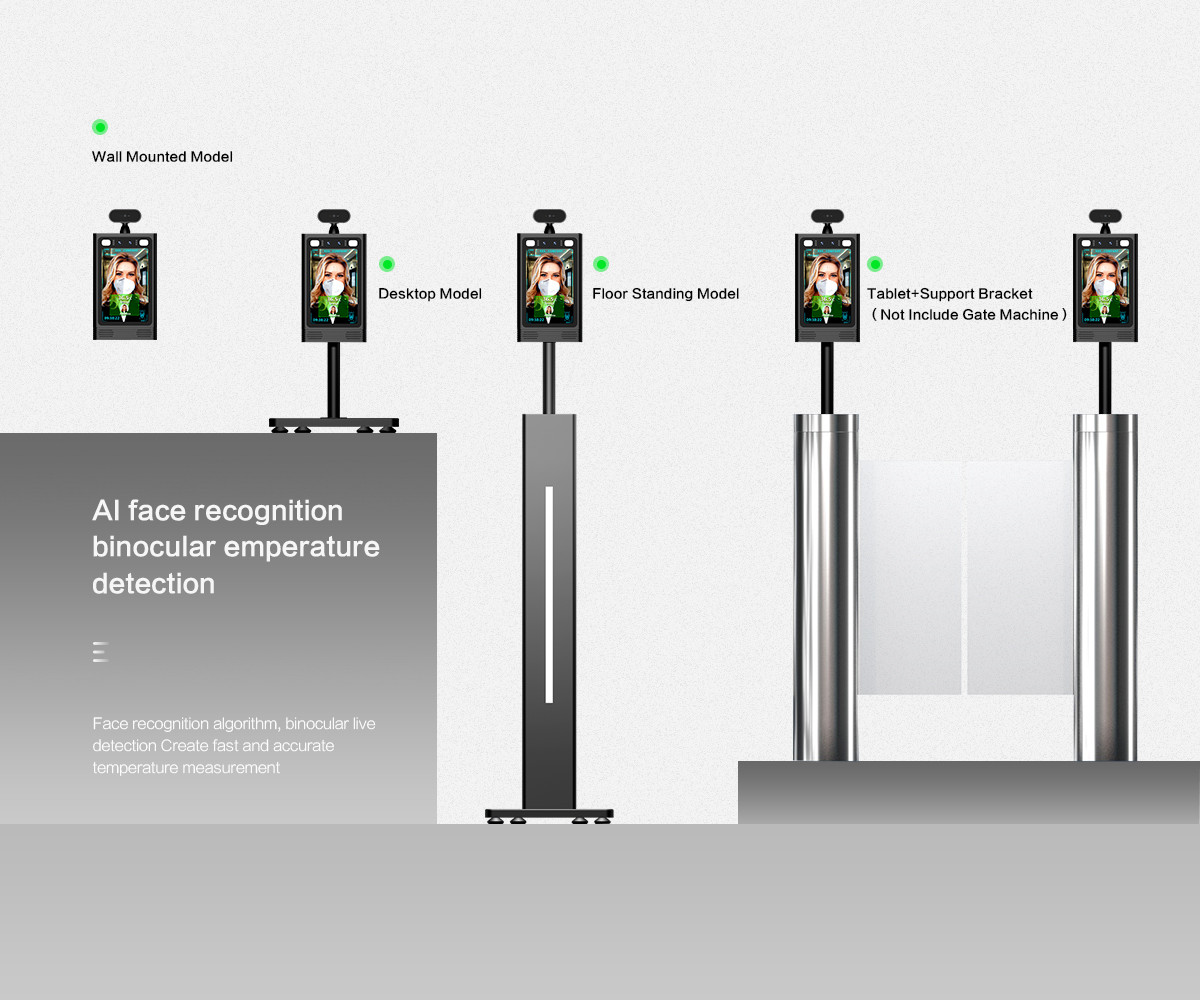

Installation and fixation

The standard stand is 1.1 meters high

(Optional)

VESA 50*50mm
