Model: AD-08R
Product Introduction

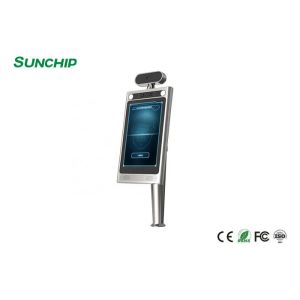

The AI Face Recognition & Temperature Monitoring Machine (Mask
recognition detection & IR temperature measurement ), it adopts
Rockchip RK3288 high-performance hardware platform, industrial
grade binocular camera and face recognition, as well as infrared
thermal imaging technology, it can easily recognize faces wearing
masks for attendance. AI Face Recognition which can be applied to
the temperature security and the fast physical examination gate
channels / channelled to achieve safe and efficient access control
.
Application
It can be matched with corresponding brackets according to
different application scenarios, such as different height stand
column brackets, which can adapt to different places.
It can be apply for communities, business buildings, schools,
hotels, scenic spots, transportation hubs and other public service
places.
| Other functions | Wireless mouse | Support |
| Human body detection module | Infrared detection |
| White fill light | White board uniform light supplement |
| Status indicator | Two color LED function indicator |
| MIC | front built-in microphone |
| dual light infrared thermal image detection | Heimann Sensor (Dual-light infrared thermal imaging detection) |
| horn | 2*2W |
| wide dynamic of binocular living | 200W 1080P Front camera |
| OSD | Multilingual OSD in English/German/Italian/Japanese/Korean |
| Reliability | working temperature | -10℃～+60℃ |
| working humidity | 20%～95% Non condensing |
| Storage temperature | -0℃～+80℃ |
| Overall power consumption | below 18W |
| Protection level | IP54 |
| ESD | Positive and negative 4K contact discharge/8Kv air discharge |
| surge | Support |
| harmonic | Support |
Main Features
- 8 inches IPS full-view HD LCD display, no streaking and delay
- Standard class 20, 000 face matching library, 1: 1 recognition rate
>99.97%,1: N recognition rate>96.7%, @0.1% false positive
rate, living accuracy rate >98.3%, @1% false rejection rate,
recognition speed < 200ms.
- Binocular live anti-counterfeiting function, anti-deception such as
photos and videos
- Support mask recognition detection, automatic recognition and voice
reminder for non-wearing masks
- Industrial grade binocular width dynamic camera, infrared and RGB
dual fill light, low light recognition worry-free.
- High-performance hardware platform, support RK3288 Quad core,
- Support body temperature measurement and high temperature alarm,
- Support multiple API docking, system, complete documentation
provided and support secondary development.
Customization is supported! Welcome to contact me for more
information.
Look forward to our cooperation~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399,
RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch,
15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD
digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as
8inch.
