RK3399 Cpu IPS Open Frame LCD Display For Supermarket Advertising
Video Media Open Frame LCD Display / IPS LCD Screen and advertising
player from Sunchip
Model No.: AD-P1040 (B02)
Open Frame LCD Display Application
Supermarket, POP Display, Bank, Retail Store, etc. All kinds of
public area for advertising display.
Open Frame LCD Display Features
Support Auto Power on / Power off at pre-set time.
Remotely control media playing,support video,photo playing,
Support playing subtitles, weather . Remotely Content
Management(CMS), support sending contents from office to Tablets.
Built with wifi, bluetoth, RJ45 Ethernet Port.
Capacitive Touch Screen, optional
Remotely control media playing like video,photo, subtitles,
weather, etc...Can have Content Management Software(CMS) to upload
contents from office to Tablets remotely.
Quick Detail:
1. Panel Size: 10.1 Inch
2. Installation:Wall-mounted, Embedded,
3, Low consumption, stable performance, highly durable
4, We can customize the frame according to your requirements
Product features:
| Interface | Type-C USB | Type-C USB_OTG*1 |
| DC | DC power 12V input |
| SD Card reader | Maximum support 128G |
| |
| Speaker output | Support 8 ohm 2W speaker*2 |
| Power connector | | | 6PIN pitch 2.0 built-in power board interface *1 (optional) | | | |
| GPIO expansion port | 4PIN spacing 2.0 GPIO external expansion port *1 (optional) | | | |
| RS232 interface | | | 4PIN spacing 2.0 RS232 or UART external expansion port *1
(optional) | |
| UART interface | 4PIN spacing 2.0 UART external expansion port *1 (optional) | | | |
| MIC interface | 2PIN spacing 2.0 MIC external expansion port *1 (optional) | | |
| Infrared remote control; | Support built-in infrared remote control (optional) |
| Infrared remote control and LED light | support 6PIN spacing 2.0 external expansion port (optional) |
| USB expansion port | 4PIN spacing 2.0 supports USB host external expansion port *3
(optional) |
| System | CPU | | | | RK3288 quad core Cortex-A17@1.8G GPU Mali T764 |
| RAM | | | | 2GB/4GB(optional) |
| Internal memory | | | 8GB/16GB/32GB(optional) | | | | | | |
| Operation system | | | Android 6.0 (Linux optional) | | | | | | |
| Touch screen | | | 10 point capacitive touch(optional) | | | | | | | | |
| Display | LCD Panel | 10.1" |
| Resolution | 1280*800 |
| Contract Ratio | 800:1 |
| Luminance | 300cd/m2 |
| Aspect Ratio | 16:10 |
| Network | WiFi | | | | 802.11b/g/n (2.4G/5G WIFI Optional) | | | | | | | | |
| Mobile network | | | Support full Netcom 4G (optional) | | | | | | | | |
| Buletooth | | | | Bluetooth 4.0 | | | | | | | |
| Ethernet | | | | 10M/100M/1000M Ethernet | | | | | | |
Competitive advantages:
1. Android system,Support webside visiting
2. Supports two boot display modes: portrait display and landscape
display
3. Support remote content update,upload,delete.
4. Support many play modes, such as loop, timing, inter-cut and so
on.
5. Support to automatically copy the contents from U disk to SD or
from SD to U disk.
6. Support install your own applications
7. Support CMS to manage your devices.
Sunchip was established in 2012, has more than 3200 square meters
of factory and office.
Has large R&D ability, and we got so many CE, FCC and ROHS
certificates on a lot of products, and already passed ISO
international quality system certification I S O 9 0 0 1/ MFi.
We have many branded customers from overseas, such as, Apple, SONY
etc.
Sunchip Main products include Android Embedded Board, Android Media
Player BOX, Stretched LCD Display, Open Frame LCD Display and other
types of Digital Signage.
Welcome to contact us!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399,
RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

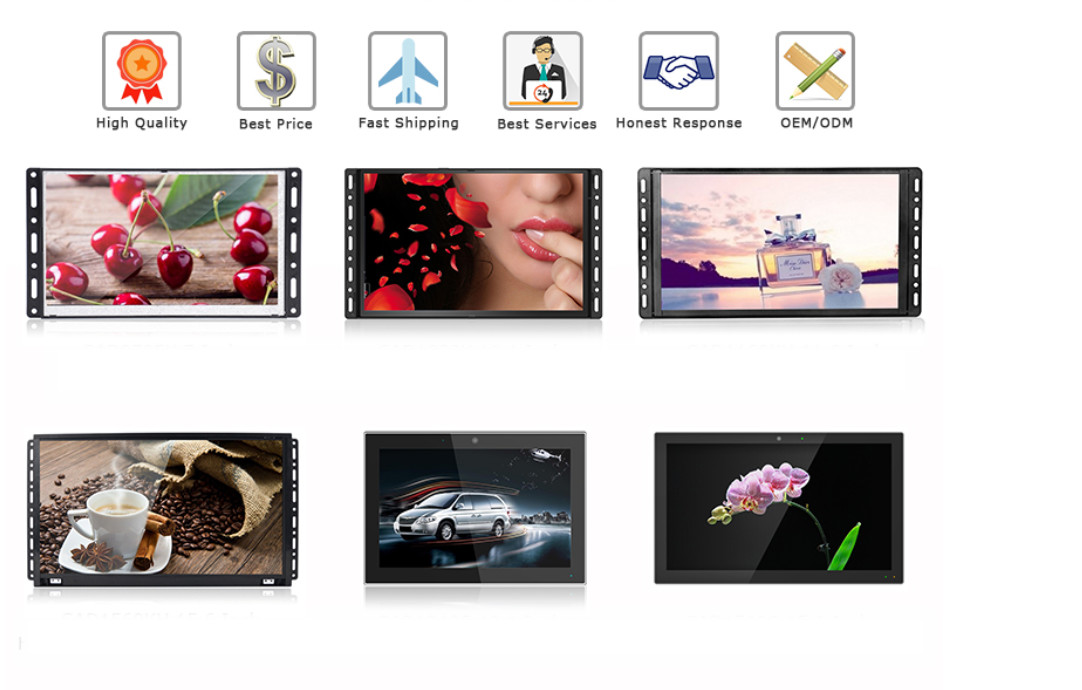

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch,
15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD
digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as
8inch.
[You can also tell us your detailed requirements, so that we advise
you a matched solution]
